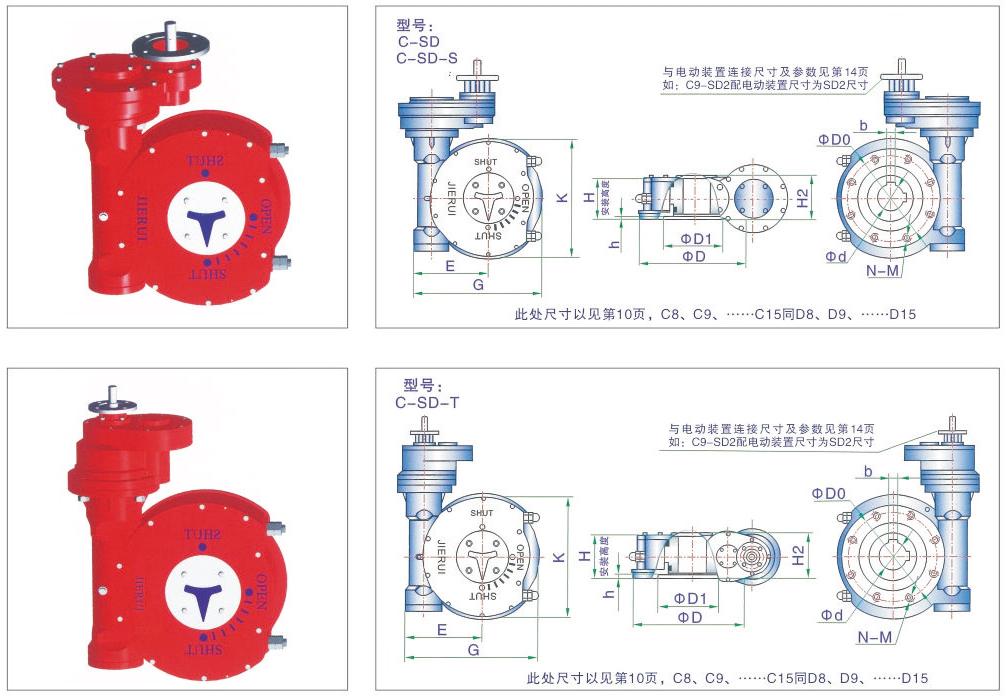

该系列是一款90°部分回转驱动装置，适用于球阀、蝶阀、旋塞阀等类型阀门。该系列是齿轮箱与蜗轮箱组合而成的，提高了机械总效率，使用小电装开大阀门，节省了使用成本,特别是选用国外快速小电装时更能显示其优越性:每种型号提供多个传动比，能更好的匹配不同规格的阀门。
型号
Model | 双级组合系列
Two-stage series | 蝶阀DN
Butterfly
valve
DN | 球阀
Ball-valve
DN | 电动装置参数
Electrical parameters | 蜗轮箱参数
Gear para meters | 蜗轮
箱与
电装
连接
尺寸 | 蜗轮
箱与
阀门
连接
尺寸 | |||||
末级
蜗轮箱
Worm | 首级
齿轮箱
Gear | 型号
Mobel | 转速
Speed
r/min | 力矩
torque
Nm | 标准速比
Ration | 输出力矩
Output-torque
Nm | 开阀时间S
Valve-open
Time | |||||
C15-SD5-S | D14 | SD5 | 2200-
2600 | 1500-
1800 | Z180 | 24 | 1800 | 552:1 | 204,000 | 345 | Connect
ed
with the
electrical
device
dime
nsions,
see page
14,such
as C9-
SD2
SD2
size with
of electric
size of
electric
devices. | Connect
ed
with the
Valve
size,see
page10,
such
as
C9-SD2
with the
valve
connect
ed
with
the same
size
as D9. |
Z250 | 24 | 2500 | 240,000 | 345 | ||||||||
C15-SD5-S | SD6-S | Z500 | 12 | 5000 | 568:1 | 240,000 | 460 | |||||
C15-SD3-T | SD4-T | IA40 | 72 | 1020 | 1472:1 | 240,000 | 305 | |||||
C16-SD5 | D15 | SD5 | 3600-
4500 | 1500-
1800 | Z250 | 24 | 2500 | 600:1 | 315,000 | 375 | ||
C16-SD6-S | SD6-S | Z500 | 12 | 5000 | 300:1 | 315,000 | 375 | |||||
C16-SD4-T | SD4-T | IA40 | 72 | 1020 | 1530:1 | 300,000 | 319 | |||||
T16-SD8-S
(1:4) | T15 | SD8-S | 3600-
4500 | 1500-
1800 | Z1000 | 12 | 10000 | 208:1 | 420,000 | 260 | ||
T16-SD8-S
SD5 | SD8-S-
SD5 | Z250 | 24 | 2500 | 936:1 | 420,000 | 585 | |||||
型号
Model | 双级组合系列
Two-stage series | 蝶阀DN
Butterfly
valve
DN | 球阀
Ball-valve
DN | 电动装置参数
Electrical parameters | 蜗轮箱参数
Gear parameters | 蜗轮箱
与电装
连接尺寸 | 蜗轮箱
与阀门
连接尺寸 | |||||
末级
蜗轮箱
Worm | 首级
齿轮箱
Gear | 型号
Model | 转速
Speed
r/min | 力矩
torque
Nm | 标准速比
Ration | 输出力矩
Output-torque
Nm | 开阀时间S
Valve-open
Time | |||||
C8-SD2 | D8 | SD2 | 700 | 350 | Z30 | 24 | 300 | 260:1 | 16,000 | 163 | 与电
动装
置连
接尺
寸见第
14页,
如C9
-Sd2
配电
动装
置尺
寸为SD2
尺寸。
Connect
ed
with the
electrical
device
dime
nsions,
see page
14,such
as C9-
Sd2
Sd2
size with
of electric
size of
electric
devices. | 与阀
门连
接尺
寸见
第10
页,
如C9
-Sd2
同D9
与阀
门连
接尺
寸一
样。
Connect
de
with the
valve
size,see
page10,
such
as
C9-SD2
with the
valve
connect
ed
with
the same
size
as D9. |
IA25 | 72 | 244 | 55 | |||||||||
C8-SD1-T | SD2-T | IA20 | 72 | 176 | 780:1 | 18,000 | 163 | |||||
C8-SD3 | SD3-S | Z60 | 24 | 600 | 195:1 | 18,000 | 122 | |||||
IA40 | 72 | 680 | 41 | |||||||||
C9-SD2 | D9 | SD2 | 800 | 400 | Z30 | 24 | 300 | 252:1 | 19,000 | 159 | ||
IA25 | 72 | 244 | 54 | |||||||||
C9-SD1-T | SD2-T | IA20 | 72 | 176 | 1008:1 | 22,000 | 210 | |||||
C9-SD3 | SD3-S | Z60 | 24 | 600 | 189:1 | 22,000 | 118 | |||||
IA40 | 72 | 680 | 40 | |||||||||
C10-SD3-S | D10 | SD2 | 900-
1000 | 500 | Z30 | 24 | 300 | 438:1 | 21,000 | 274 | ||
IA25 | 72 | 244 | 91 | |||||||||
C10-SD1-T | SD2-T | IA20 | 72 | 176 | 1168:1 | 35,000 | 242 | |||||
C10-SD3 | SD3-S | Z60 | 24 | 600 | 292:1 | 25,000 | 183 | |||||
IA40 | 72 | 680 | 28,000 | 61 | ||||||||
C10-SD3-S | SD3 | Z60 | 24 | 600 | 438:1 | 42,000 | 274 | |||||
IA35 | 72 | 474 | 40,000 | 91 | ||||||||
C10-SD4 | SD4-S | Z120 | 24 | 1200 | 292:1 | 42,000 | 183 | |||||
IA70 | 72 | 1020 | 61 | |||||||||
C11-SD3-S | D11 | SD2 | 1100-
1200 | 600 | Z30 | 24 | 300 | 498:1 | 25,000 | 311 | ||
IA25 | 72 | 244 | 104 | |||||||||
C11-SD1-T | SD2-T | IA20 | 72 | 176 | 328:1 | 41,000 | 275 | |||||
C11-SD3 | SD3-S | Z60 | 24 | 600 | 332:1 | 30,000 | 207 | |||||
IA40 | 72 | 680 | 34,000 | 69 | ||||||||
C11-SD3-S | SD3 | Z45 | 24 | 450 | 498:1 | 45,000 | 311 | |||||
Z60 | 24 | 600 | 55,000 | 311 | ||||||||
IA35 | 72 | 474 | 48,000 | 104 | ||||||||
IA40 | 72 | 680 | 55,000 | 104 | ||||||||
C11-SD4 | SD4-S | Z120 | 24 | 1200 | 332:1 | 55,000 | 207 | |||||
IA70 | 72 | 1020 | 51,000 | 69 | ||||||||
C12-SD4-S | D12 | SD3 | 1400-
1600 | 700 | Z60 | 24 | 600 | 528:1 | 63,000 | 330 | ||
Z90 | 24 | 900 | 78,000 | 330 | ||||||||
IA40 | 72 | 680 | 71,000 | 110 | ||||||||
C12-SD2-T | SD3-T | IA35 | 72 | 474 | 1056:1 | 76,000 | 220 | |||||
C12-SD4
(1:4) | SD4-S | Z90 | 24 | 900 | 352:1 | 62,000 | 220 | |||||
IA70 | 72 | 1020 | 71,000 | 74 | ||||||||
C13-SD4-S | D13 | SD3 | 1600-
1800 | 800 | Z90 | 24 | 900 | 552:1 | 96,000 | 345 | ||
IA40 | 72 | 680 | 87,000 | 115 | ||||||||
C13-SD2-T | SD3-T | IA35 | 72 | 474 | 1104:1 | 94,000 | 229 | |||||
C13-SD4
(1:4) | SD4-S | Z90 | 24 | 900 | 368:1 | 77,000 | 230 | |||||
IA70 | 72 | 1020 | 87,000 | 77 | ||||||||
C14-SD4 | D14 | SD4 | 1800-
1200 | 900 | Z120 | 24 | 1200 | 612:1 | 154,000 | 383 | ||
IA70 | 36 | 1290 | 165,000 | 255 | ||||||||
C14-SD3-T | SD4-T | la40 | 96 | 542 | 1632:1 | 162,000 | 255 | |||||
C14-SD5 | SD6-S | Z250 | 24 | 2500 | 468:1 | 160,000 | 255 | |||||
